Dol Sensors

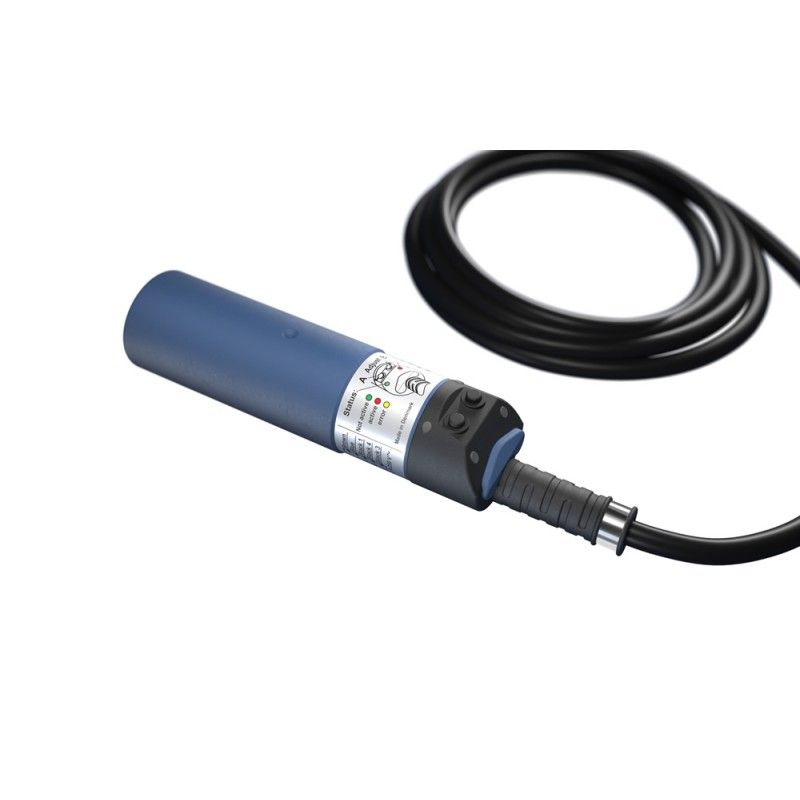

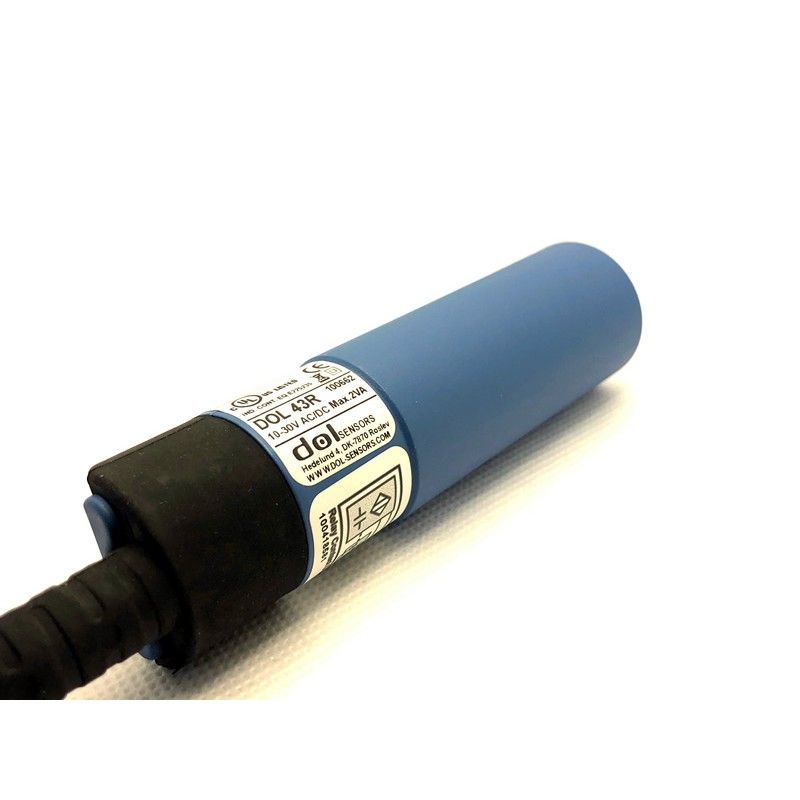

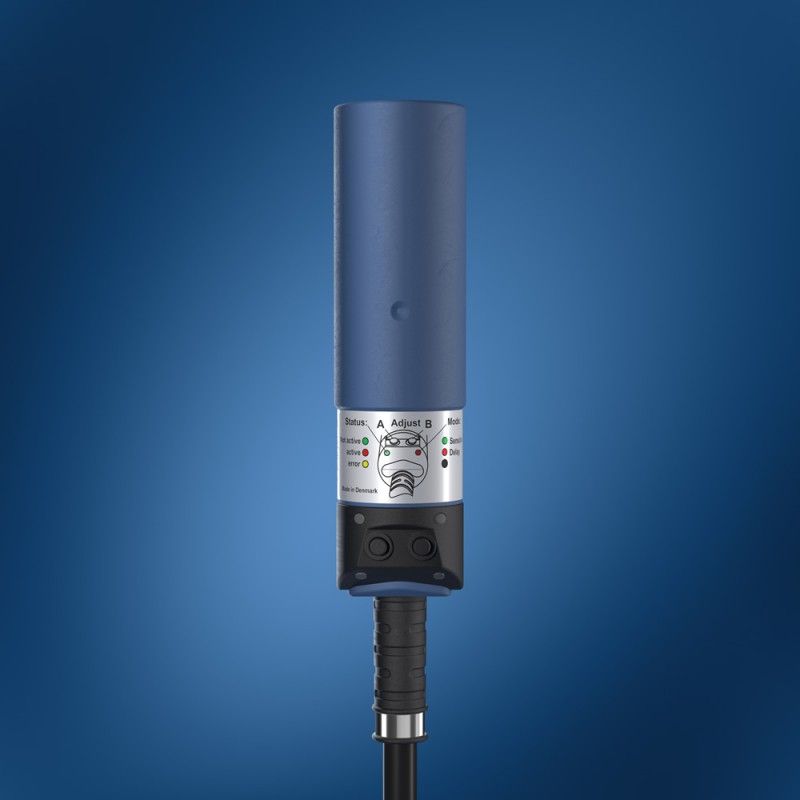

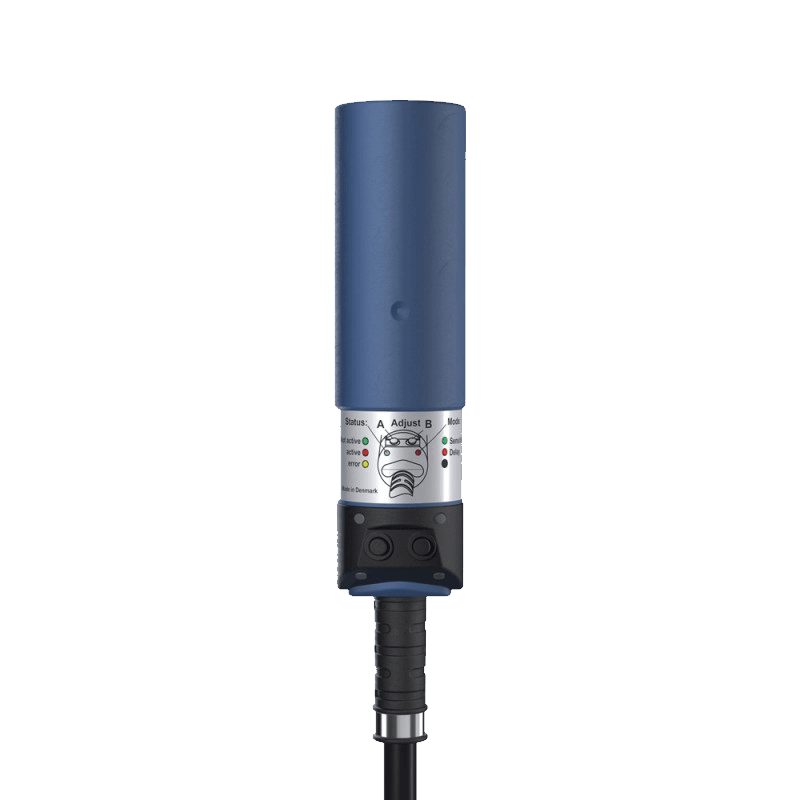

DOL 43R Capacitive Sensor - Delayed switch-off (Off delay) 90-250v
Product Code: 100661
The DOL 41R has no time delay, the DOL 43R has the option of delayed disconnection. In addition to the two options mentioned, the DOL 45R also has the option of delayed switch-on. The sensitivity of the sensor and delay time are adjusted by two push button switches, and light diodes indicate when the switches are activated. The DOL 40R series of capacitive sensors from dol-sensors provides
great functionality and is easy to operate.
- By means of a new microcomputer technique, all functions have been put together in one sensor – DOL 45R. DOL 43R and DOL 41R are
variants with fewer features. - The sensitivity and the delay length are adjusted by two switches.
- LEDs indicate when the switches are activated. Naturally, all settings can easily be changed again later on.

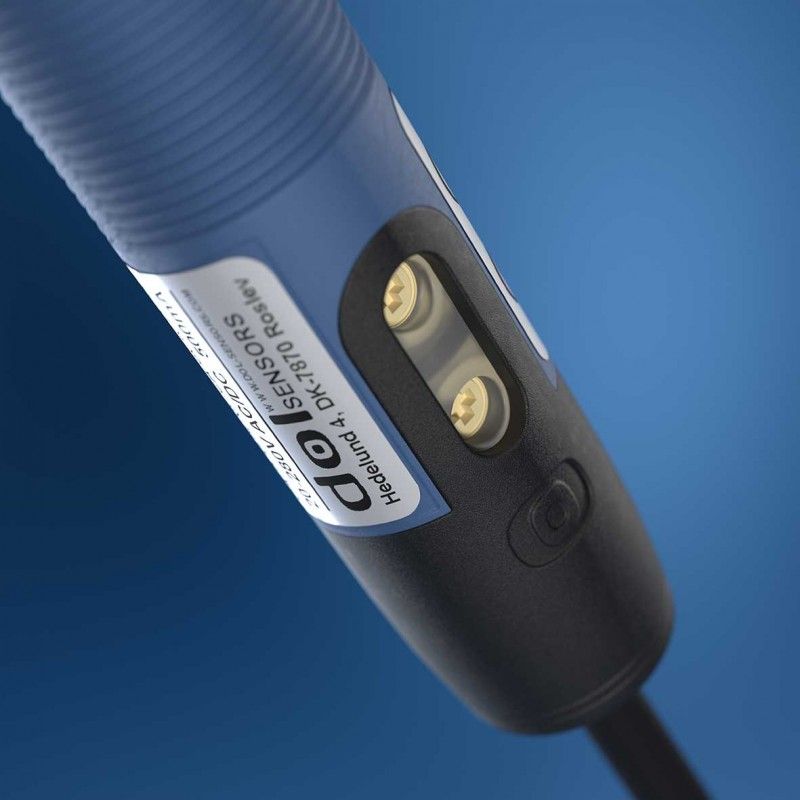

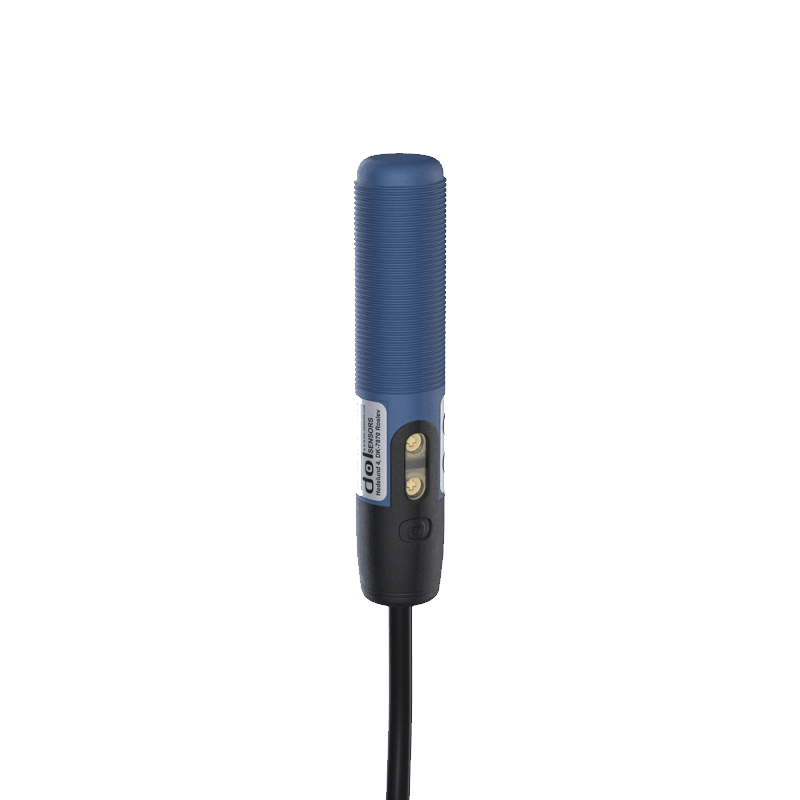

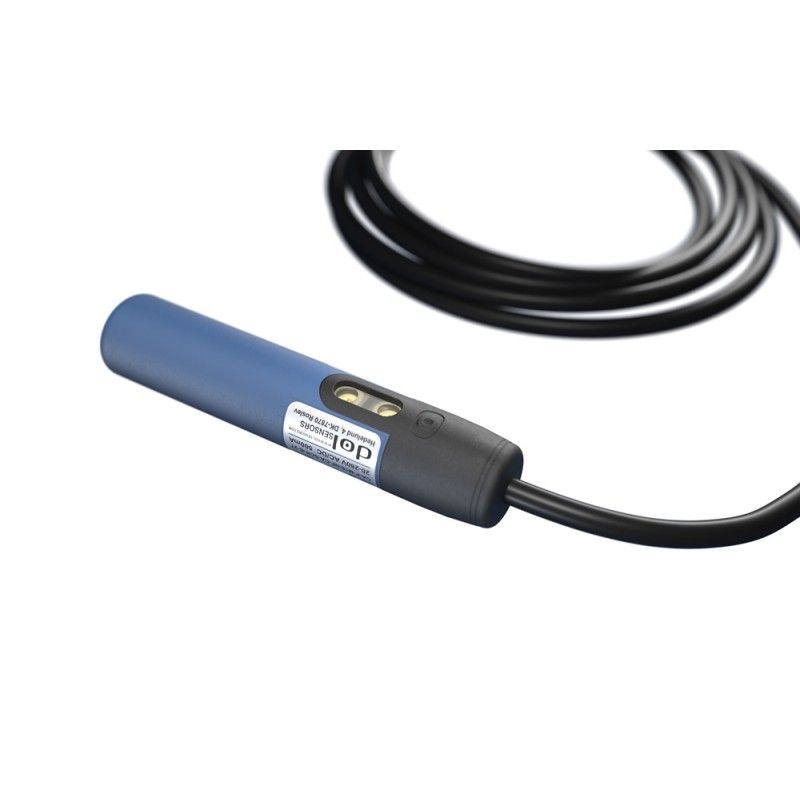

DOL 26 Proximity sensor
Smooth/threaded
Product Code:
DOL 26 Proximity Switch 18mm dia, with 0-60 second delay (Pre-set to 30) Adjustable Sensitivity 0-12mm (Pre-set to 6mm) (20-280VAC/DC) 2 wire
PRODUCT FEATURES
- DOL 26 is a capacitive sensor for detecting loose and solid materials.
- DOL 26 is immune to EMI, short circuits and any overload. No more burned off sensors due to installation mistakes.
- The mechanical design makes DOL 26 ideal for integration into applications with limited space. The full-return option is especially suited for feeding pans.
- Very low power consumption in off state – enables possibility for sensors working in parallel on the same contactor. Unique possibility for controlling cross auger systems.
- IP69k and NEMA 1/3/4/6/12/13 environment protection.
FUNCTIONALITY
- Easy trimmer adjustment on a single turn 240° trimmer with linear or non-linear scale.
- The sensitivity of the sensor can be fixed or adjusted using a trimmer to suit different types of feed.
- The ON/OFF delay and MaxRunTimer of the sensor can be fixed or adjusted using a trimmer to suit different motor control units.
- Functions which can be made available for adjustment on trimmers:
- Make / Break contact
- ON and/or OFF delay
- MaxRunTimer

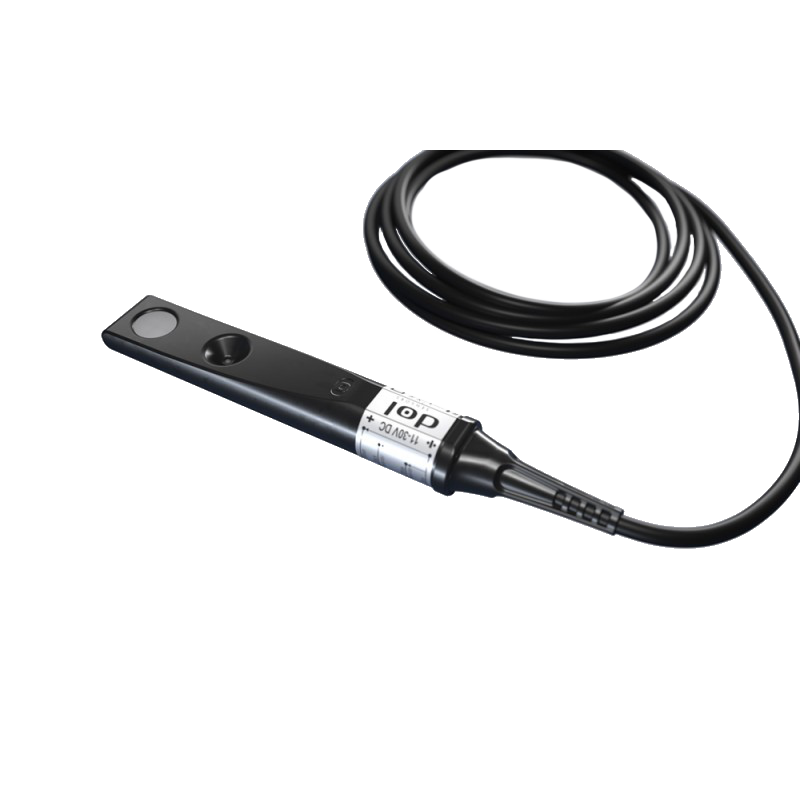

DOL 104 Humidity
Sensor (0-10v)
Product Code: 140263

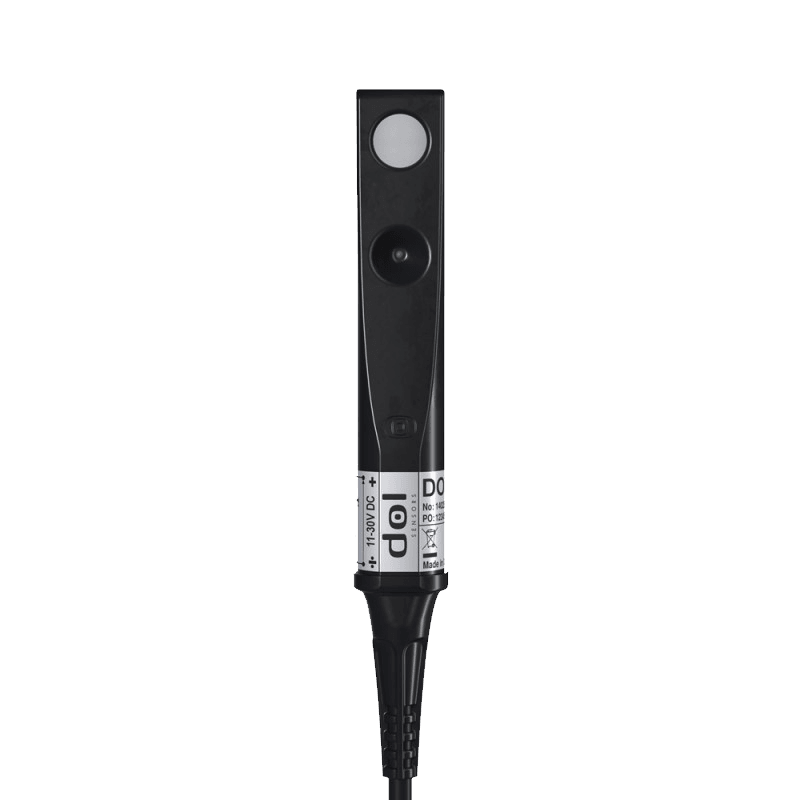

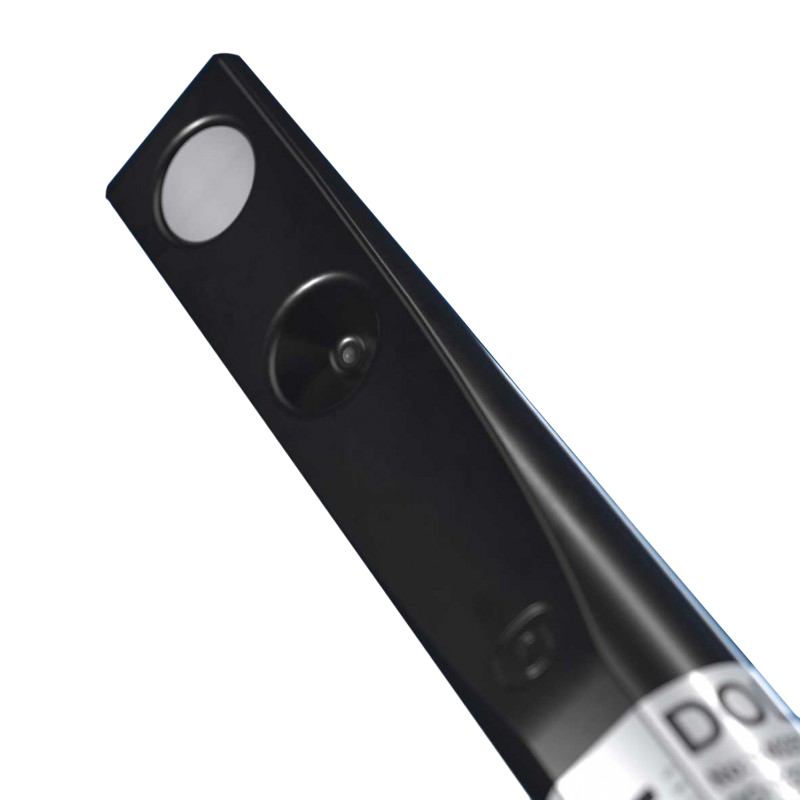

The DOL 104 is a high-precision sensor for measuring relative humidity designed for use in livestock houses but is also well suited for a number of industrial applications.
The sensor has an analogue output with a very low output resistance and full protection against short circuits and wiring failures. The special sensor element and the built-in filter enable application in livestock houses with constantly high humidity. A microprocessor controls the sensor and has a two-colour light-emitting diode (LED) for communication of operation status and error diagnostics. A protective cap is available, eliminating the need to remove the sensor when cleaning the livestock house.

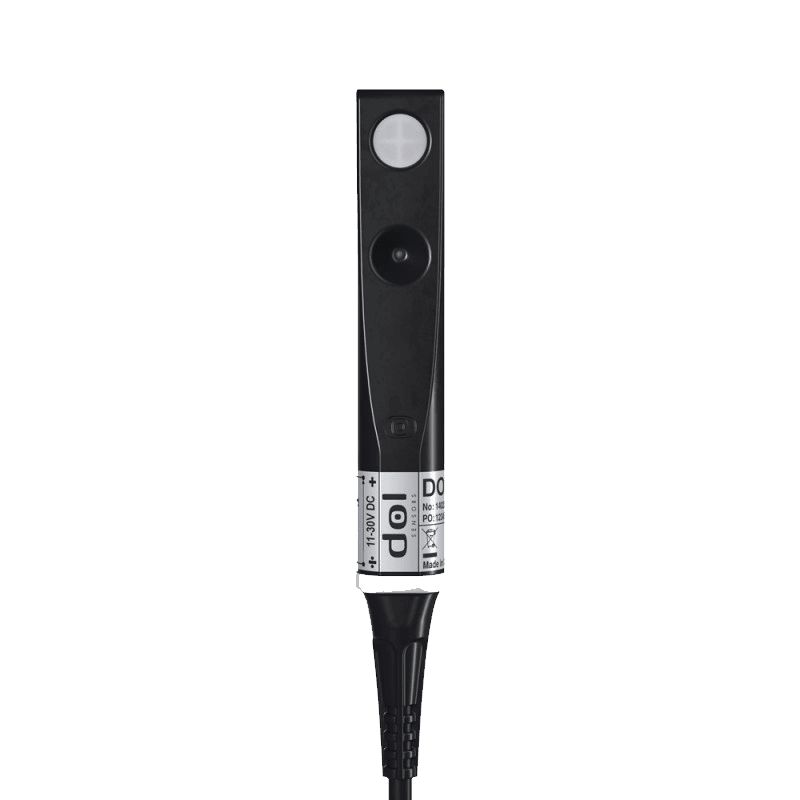

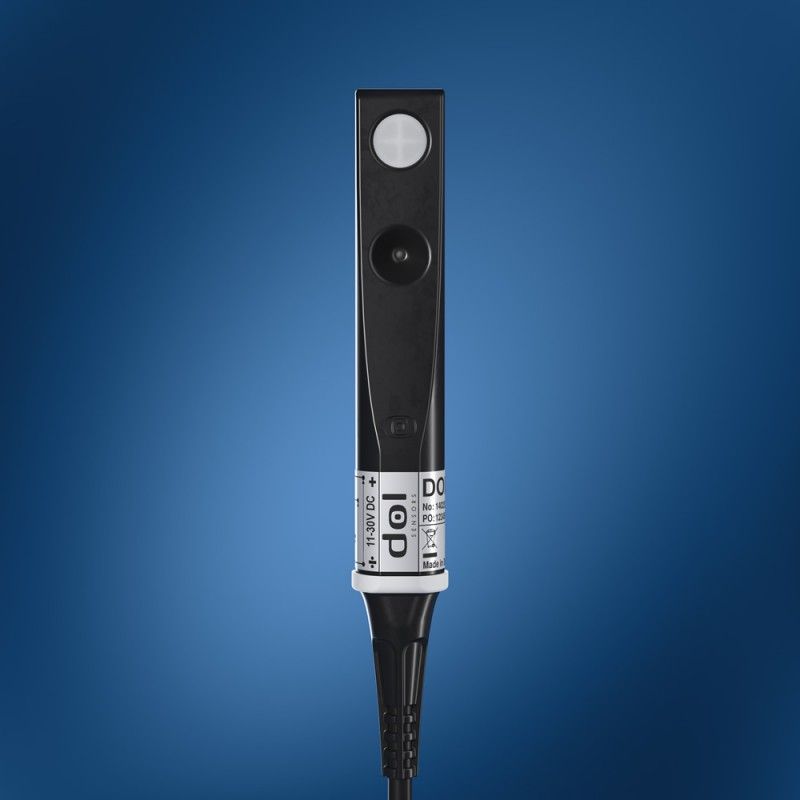

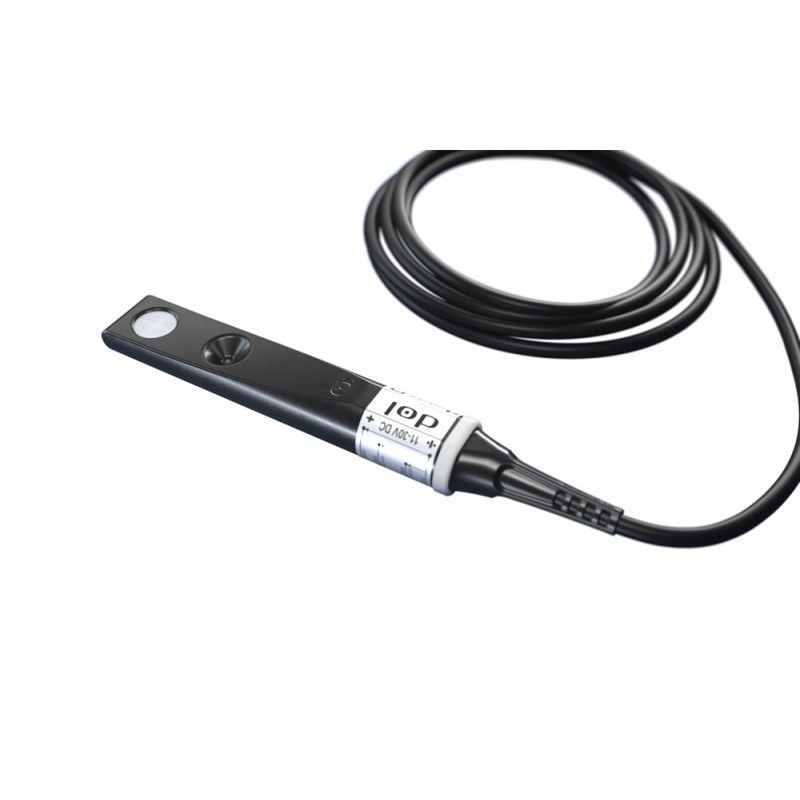

DOL 16 - Light Sensor
0/100/1000 LUX 0-10v
Product Code: 140268
The DOL 16 is a sensor designed to measure light intensity. It has been developed to handle the harsh livestock environment but is also well suited for a number of industrial applications.
The level of light is a factor that broiler producers must actively control to achieve high productivity. The gain of the broilers and the laying of eggs by parent stock are optimised with correct light control. Using the DOL 16, it is possible to maintain the light level recommended by breeding companies or to maintain a light level which has been a positive experience for the broiler producer himself.

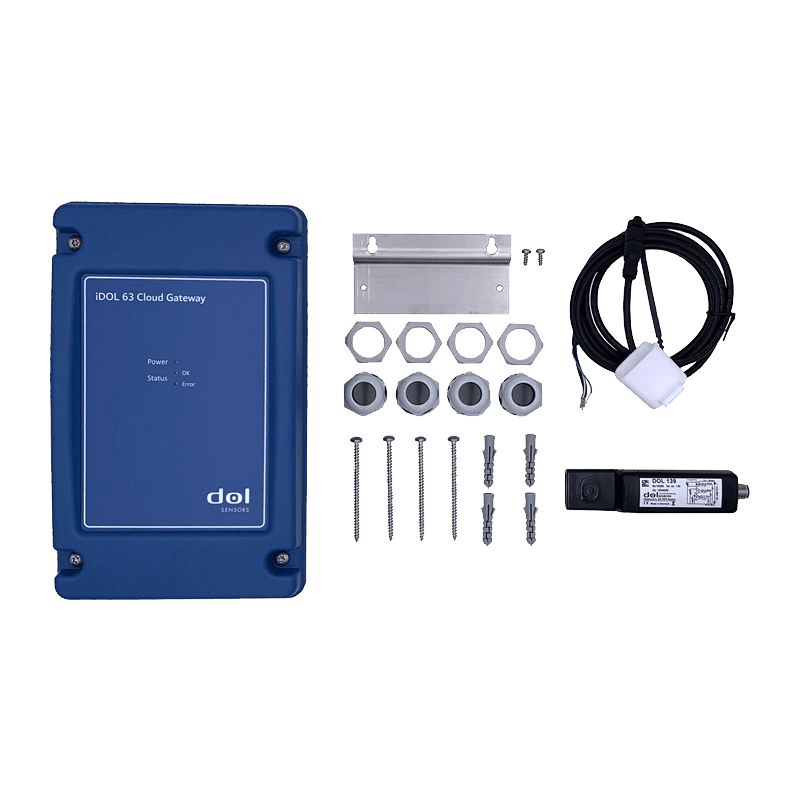

Idol 63 Cloud
Gateway
Product Code:

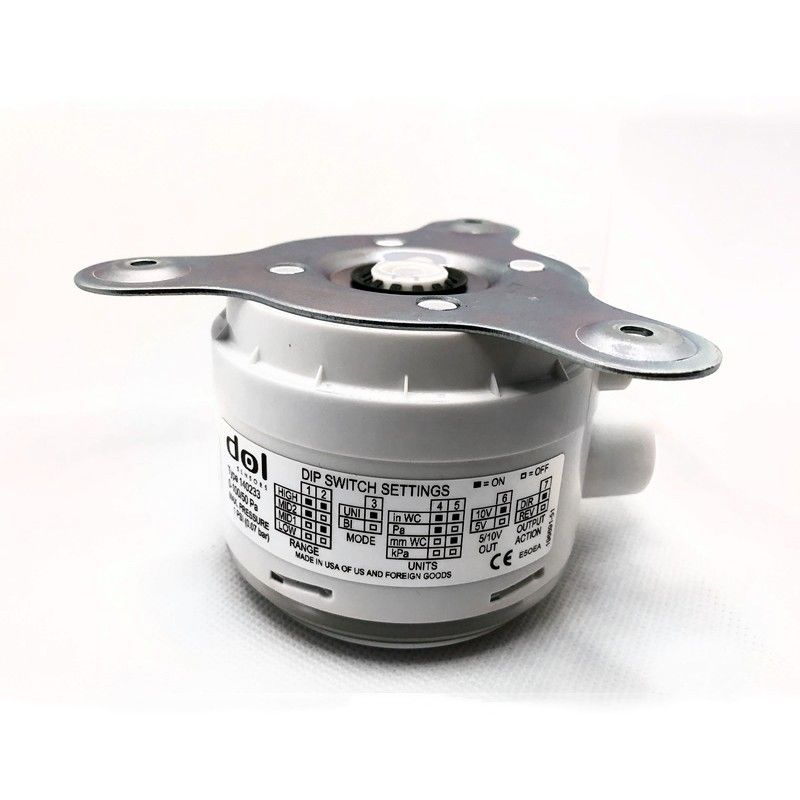

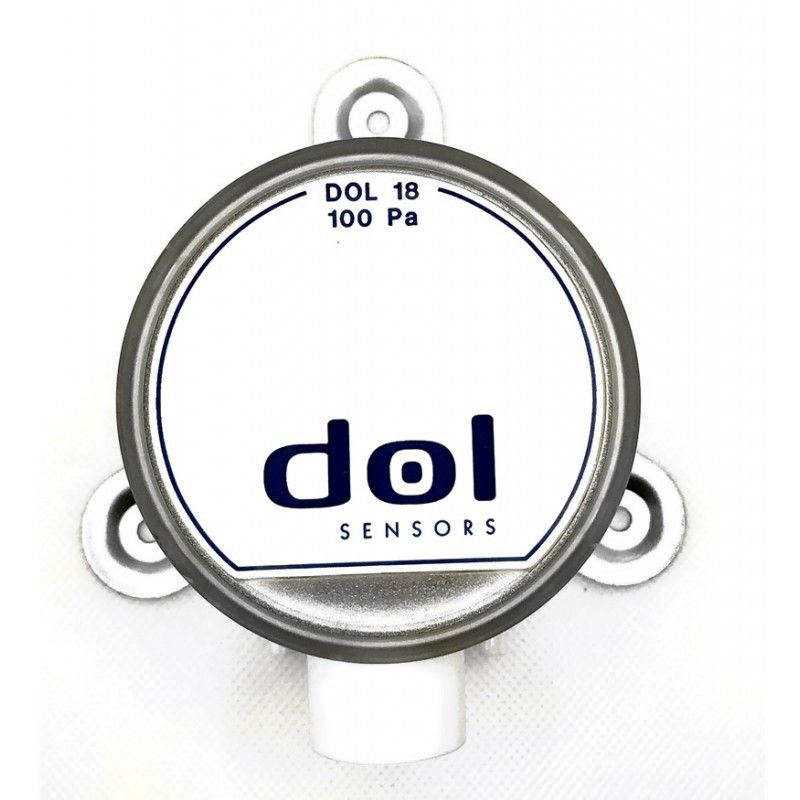

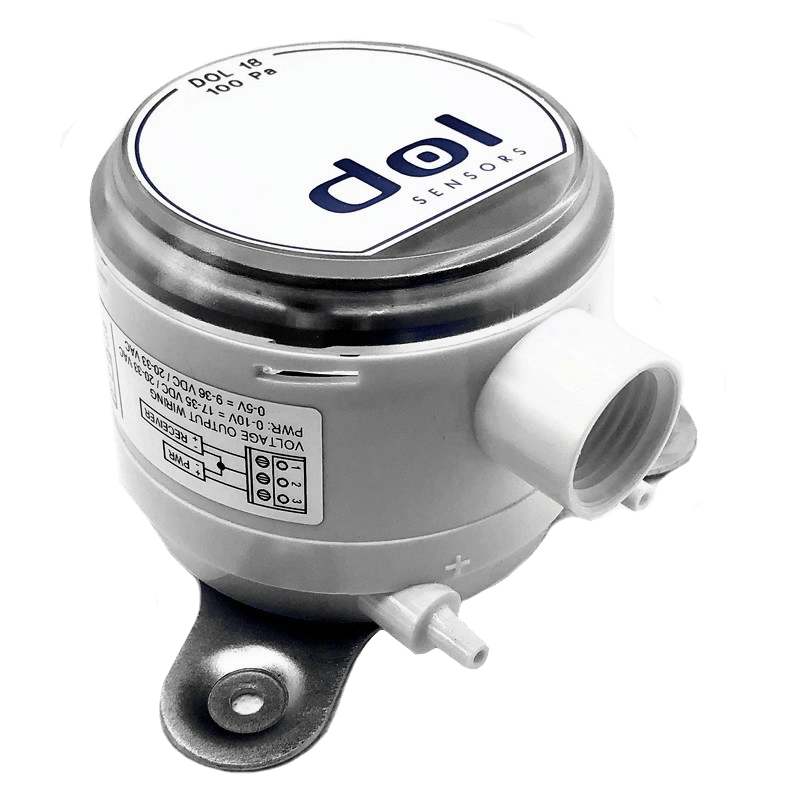

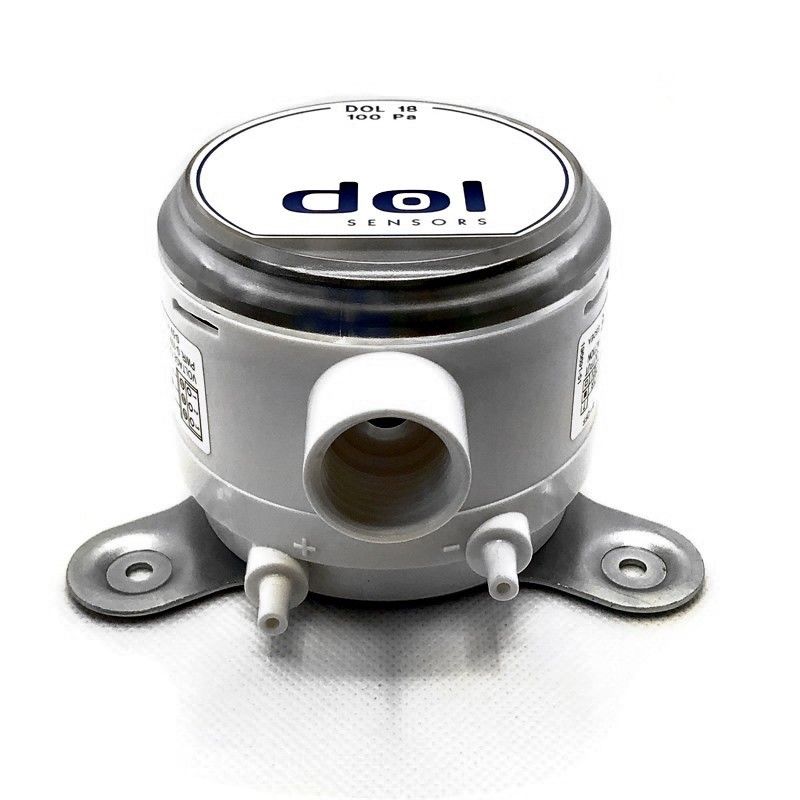

DOL 18 Electronic Sub-pressure
Sensor
Product Code: 140233
The DOL 18 is used primarily for measuring negative pressure in livestock houses and to trigger an alarm if the pressure is too low or too high, but it can also be used in other environments where there is a need for measurement of negative pressure.
dol-sensors’ electronic DOL 18 sensor is used for very precise measurement of negative pressure.
The DOL 18 is used primarily for measuring negative pressure in livestock houses and to trigger an alarm if the pressure is too low or too high, but it can also be used in other environments where there is a need for measuring negative pressure.
DOL 18 is available with a wide selection of measuring ranges from 25Pa to 1250Pa, and with 0-5V, 0-10V and 4-20mA outputs.

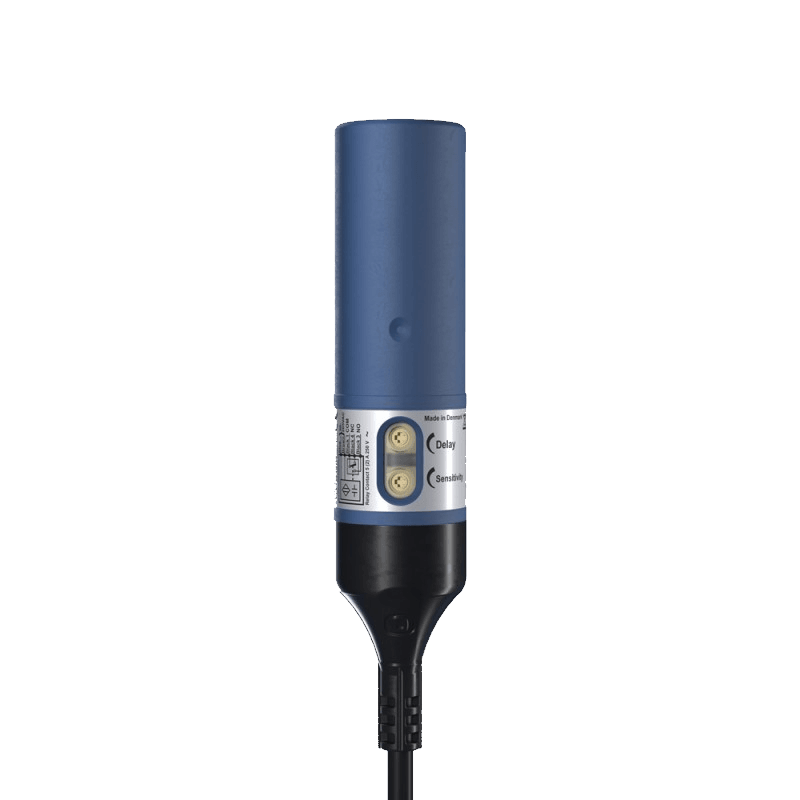

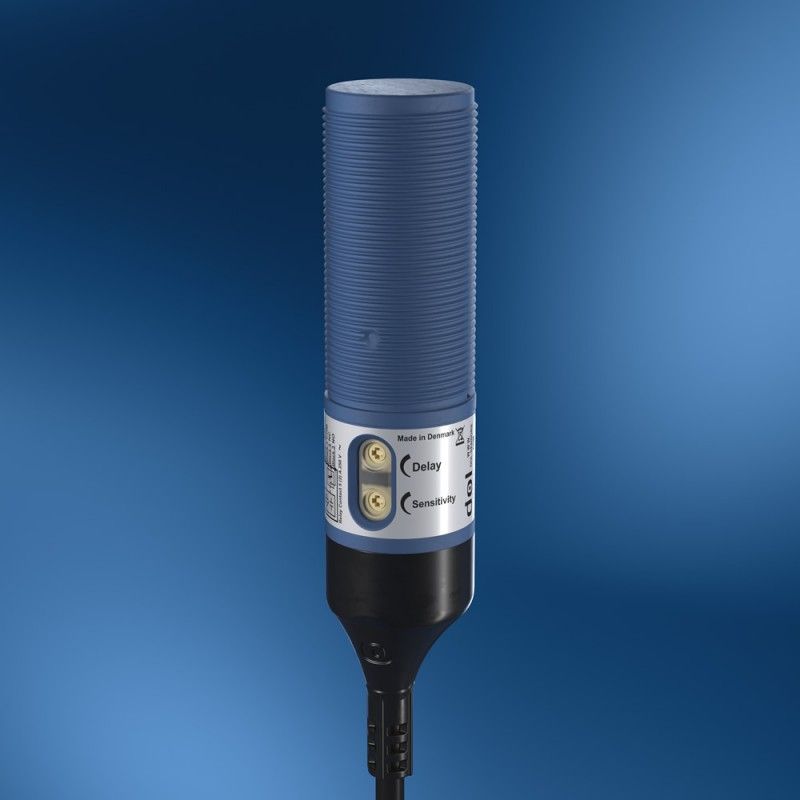

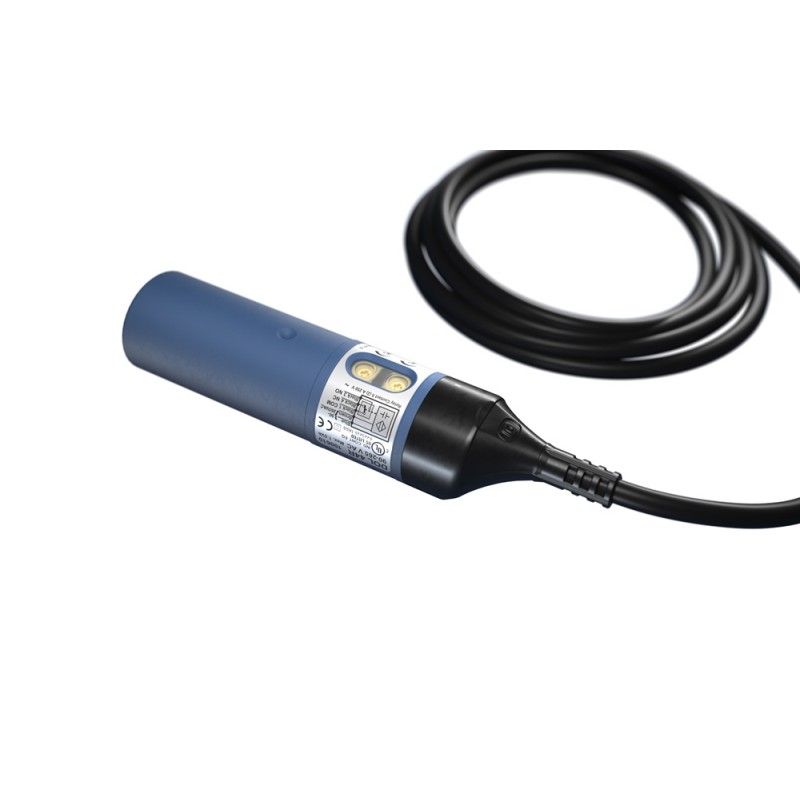

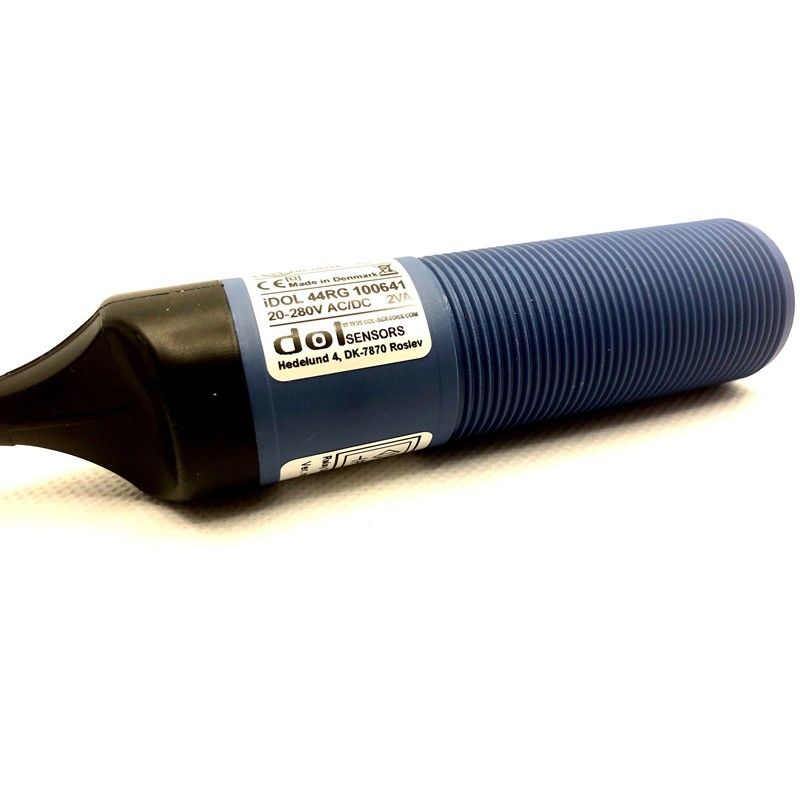

iDOL 44RG Capacity Relay sensor - Detection of Feed, Grain & Solids (20-280v
Product Code: 100641
The iDOL 44RG is the future of feed sensors. Based upon the DOL 44R, the iDOL 44RG features setup and adjustment of parameters and settings through a wireless interface.
DOL 44R is a complete range of 30 mm capacitive feed sensors with relay output. The sensors have robust functionality and are easy to operate. Settings are easily changed via two trimmers using a small screwdriver. DOL 44R has a high immunity to noise from electric communication (e.g. mobile phones) and transients (e.g. from motors and contactors). The IP69K protection class offers the highest protection against water and other liquids, e.g. during cleaning of livestock houses.
- The sensors have robust functionality and are easy to operate.
- Settings are easily changed via two trimmers using a small screwdriver.
- DOL 44 has full temperature compensation, and the sensor is very robust as regards washing and EMC protection.
- The sensor can, therefore, be used in environments with frequency converters. A red LED light clearly indicates the current status of the relay sensor.
The iDOL 44R is the future of feed sensors. Based upon the DOL 44R, the iDOL 44R features setup and adjustment of parameters and settings through a wireless interface. Matched with the iDOL companion app on your smartphone, the iDOL 44R is both easier to operate and more flexible than any other capacitive feed sensor. The iDOL app allows for more parameters to be available for the user, compared to a traditional sensor with two trimmers operated by a screwdriver. The result is a more flexible sensor, which can be adapted to the individual need of the user. At the same time, the iDOL 44R sensor is also much easier to operate and understand, since the setup of parameters is done with a user-friendly user interface, which is easy to understand.
Fields of application:
- Level control in silos and containers
- Controlling the filling and emptying process

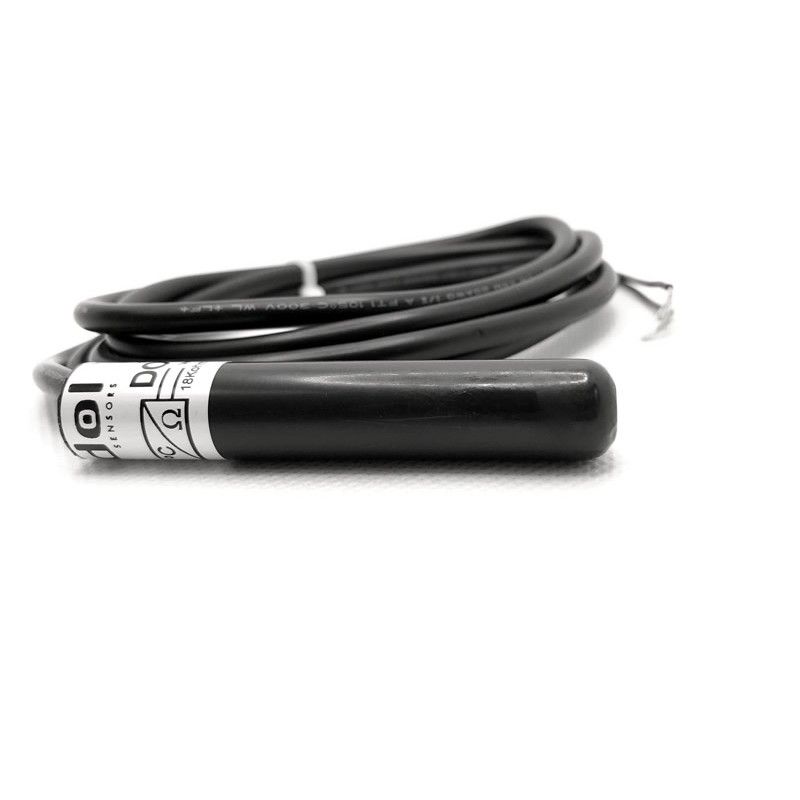

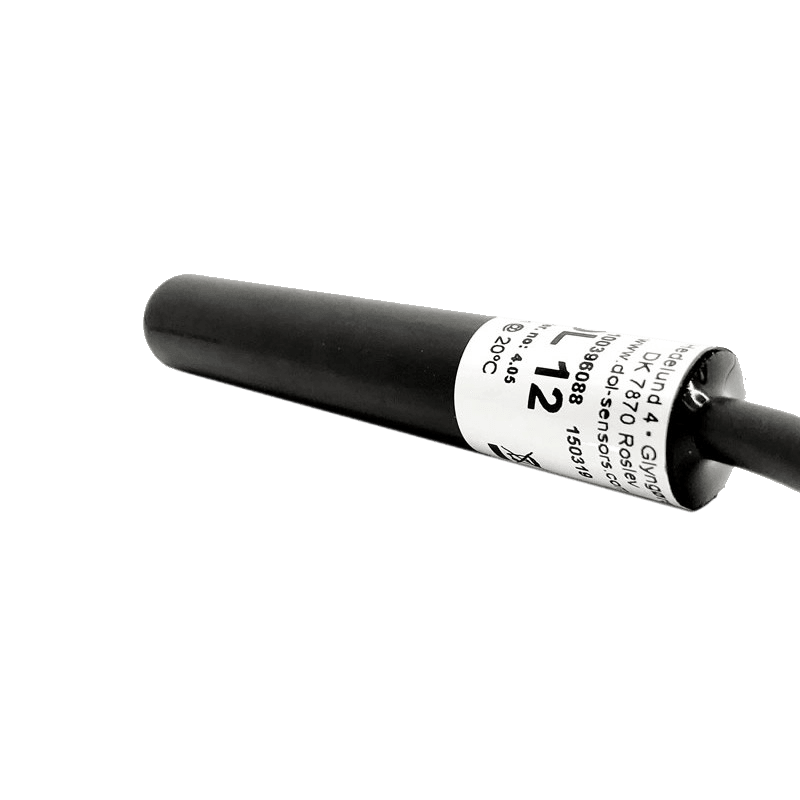

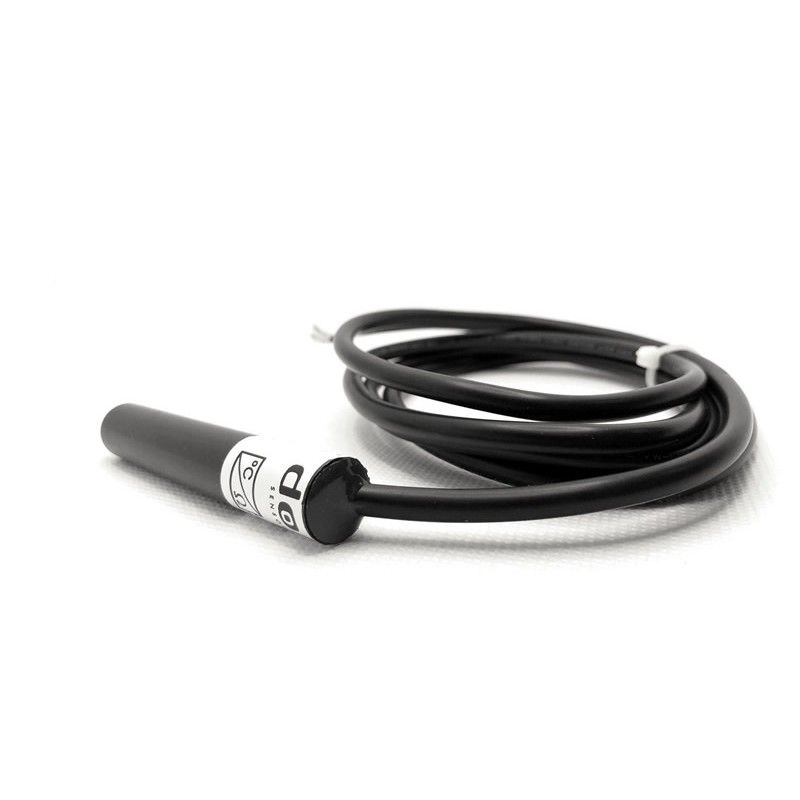

DOL 12 Temperature
Sensor
Product Code: 140200
DOL 12 is a simple temperature sensor. The sensor is well suited for use in environments where a sturdy design is required
This sensor is intended for measuring both inside and outside temperatures.
